High Voltage System
13006 Battery Module (Removal and Replacement)
Correction Code : 13006 Working Hours : 4H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove rear bumper . See link below
Step 2
Remove side upper panel. See link below
Step 3
Remove battery grill trim. See link below
Step 4
Remove Rear Wheel Liner. See link below
Step 5
Remove rear caliper. See link below (No need to remove the oil pipes)
02007 Rear Brake Caliper (Removal and Replacement)
Tip: There are still oil pipes in the handle assembly, don’t pull it hard.
Step 6
Remove Rear Speed sensor (Removal and Replacement)
Tip: There are still wiring harnesses in the handle assembly, don’t pull it hard.
Step 7
Remove Motor HV Harness . See link below
Step 8
Remove Swing Arm Underbody Panel . See link below
Step 9
Remove Bottom Shear Panel . See link below
Step 10
After remove the caliper ,the rear wheel can be install
Step 11

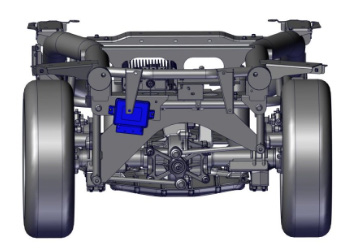

Rvmove the EPB Control Unit
Step 12

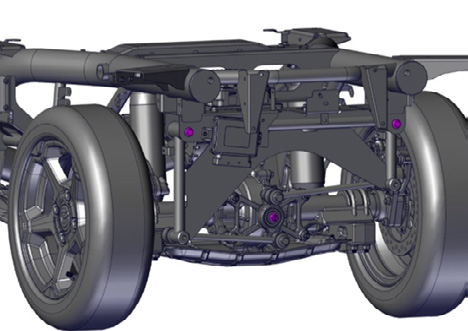

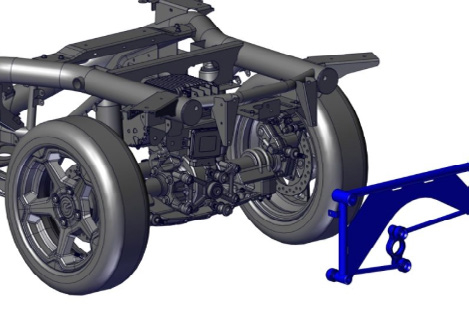

Remove the Watt’s Linkage assembly fixing bolt ( Troque : M12-1.75 X75mm-75 N-m 、M10-1.5 X25mm-55N-m)
Step 13
Remove the upper rear shock bolts ( Troque : 70 N-m )
Step 14

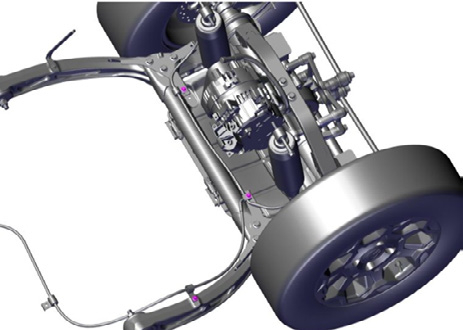

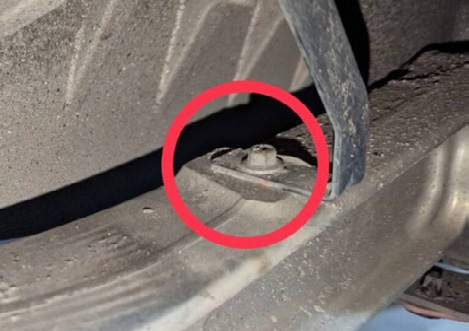

Remove the brake oil line fixing screw on the left swing arm
Step 15

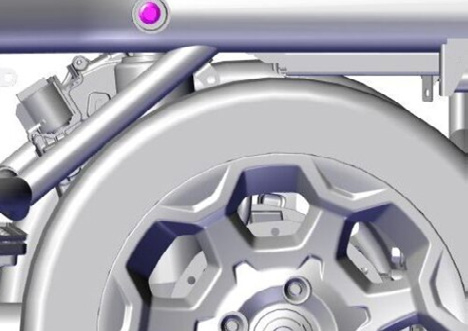

Remove the Load Weight sensor fixing screw on the right swing arm
Step 16

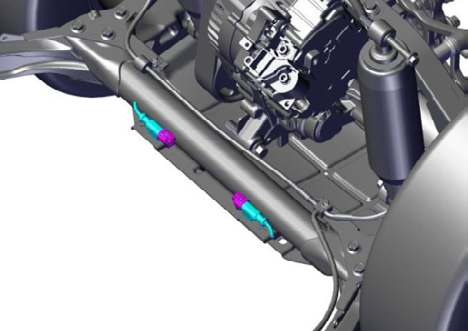

Remove the ABS sensor connector and move the wiring harness away from the cross beam.
Step 17

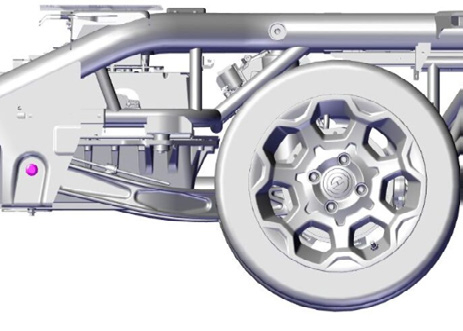

Remove the swing arm bolts with Rear chassis ( Troque : 84 N-m )
Step 18

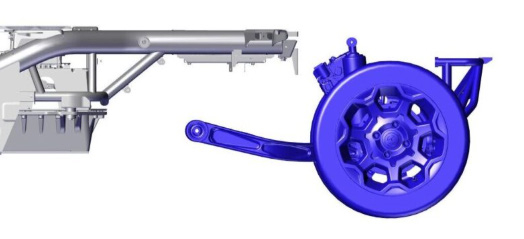

The rear suspension assembly can be pulled back
Step 19

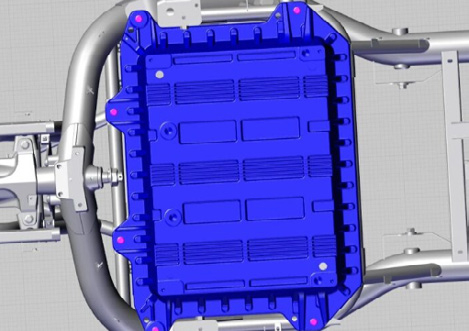

Place a jack under the Battery Module and remove the Battery Module fixing bolt ( Troque : 25 N-m )
Install
Installation procedure is the reverse of removal.
