Cargo Box Parts

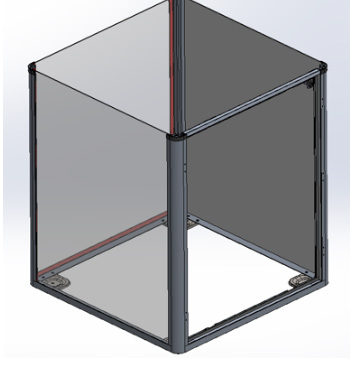

Cargo Side Panel
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CG05036 | Cargo Side Panel-AL | 3 |

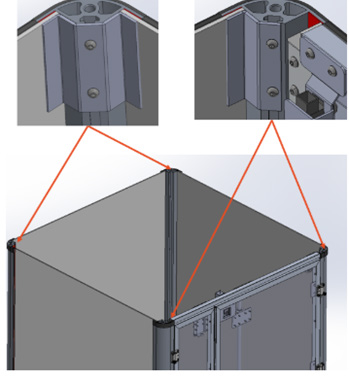

| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CG05032 | Reinforcement plate-single | 4 |
| 2. | RP3-CG05033 | Reinforcement plate-double | 4 |
| 3. | 9103002-M6 | Screw, M6-1.0X10mm Hex Socket Round Head Cap |
16 |
| 4. | 9205001-M6 | Aluminium T Shape Nut M6 | 16 |
