High Voltage System

13002 DC/DC Converter (Removal and Replacement)

Correction Code : 13002 Working Hours : 0.7H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Perform Disconnect Power

11001 Disconnect Power (Removal)

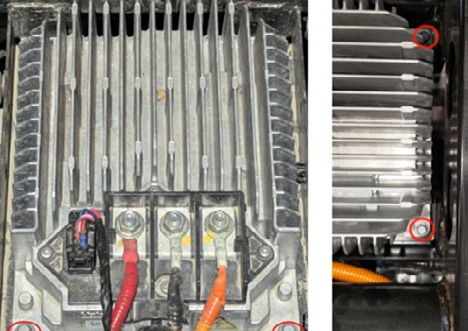

Remove DC/DC Converter connector protection cap

Disconnect the DCDC +/- electrical connection, 12V+ and the signaling electrical connection . then
removed plug and DC/DC Converter fixing bolt

Install

Installation procedure is the reverse of removal.
