Low Voltage Electrical Parts

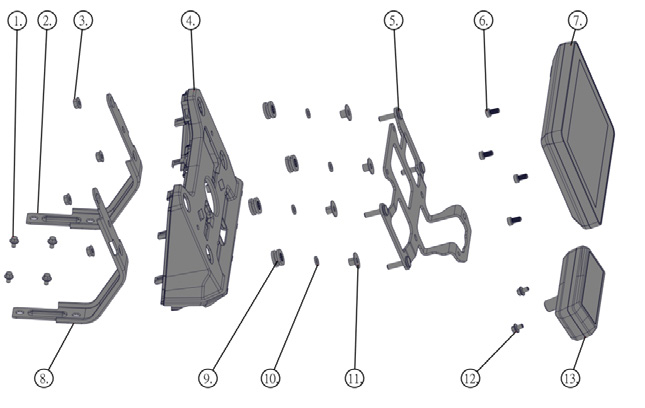

12002 Dash Parts
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | 9102003-M6 | M6-1.0*12 | 4 |
| 2. | RP3-CA02068 | Dash Bracket Stamping RH | 1 |
| 3. | 9203002-M6 | M6 NUT | 4 |
| 4. | RP3-BY02013 | Front Dash Bracket Cover | 1 |
| 5. | RP3-CA02057 | 8 Inch Dash Adaptor Bracket | 1 |
| 6. | 9101005-M6 | M6-1.0*12 | 4 |
| 7. | RP3-EP01005 | DASH 8 Inch LCD | 1 |
| 8. | RP3-CA02051 | Dash Bracket Stamping LH | 1 |
| 9. | RP3-BC03008 | Windscreen Rubber Grommet, Rubber | 4 |
| 10. | 9402001-M6 | Washer, M6 | 4 |
| 11. | RP3-CA02069 | T-bushing | 4 |
| 12. | 9102001-M5 | M5-0.8*8 | 2 |
| 13. | RP3-EP01006 | IDU LED | 1 |
