Body

06024 Side Upper Panel (Removal and Replacement)

Correction Code : 06024 Working Hours : 0.6H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Cargo Box. See link below

14002 Cargo Box (Removal and Replacement)

Remove Side Low Panel. See link below

06022 Side Lower Panel (Removal and Replacement)

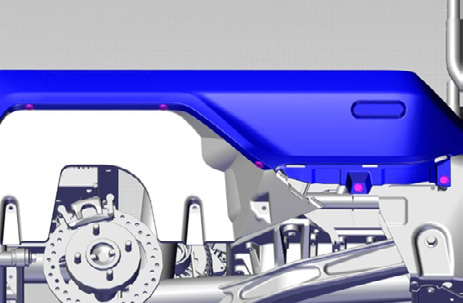

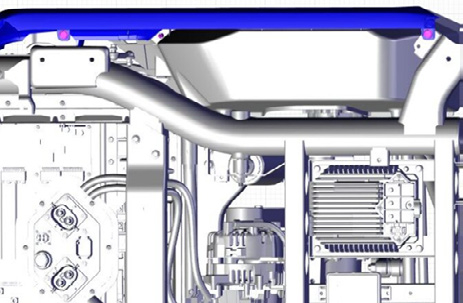

Remove the clip

Install

Installation procedure is the reverse of removal.
