Tilt System Assembly Parts

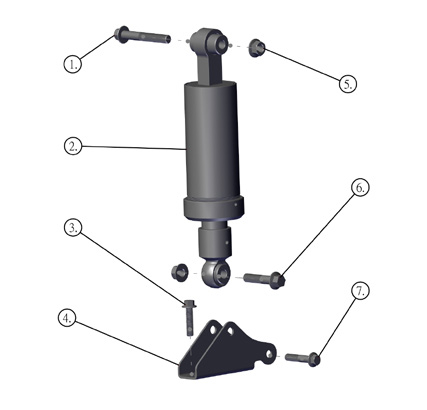

15005 Tilt Spring Parts
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | 9102003-12 | M12-1.75×85 | 1 |
| 2. | RP3-G103012 RP3-G103010 |
Tilt Spring,LWS Tilt Spring |
1 |
| 3. | 9102001-10 | M10-1.5×40 | 1 |
| 4. | RP3-CA02026 | Tilt Spring Mount Bracket | 1 |
| 5. | 9203002-12 | M12 NUT | 2 |
| 6. | 9102005-12 | M12-1.75 X60 | 1 |
| 7. | 9102005-10 | M10-1.5*50 | 1 |
