Body

06019 Storage Compartment – L (Removal and Replacement)

Correction Code : 06019 Working Hours : 1.1H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Dash Cover . See link below

06018 Dash Cover (Removal and Replacement)

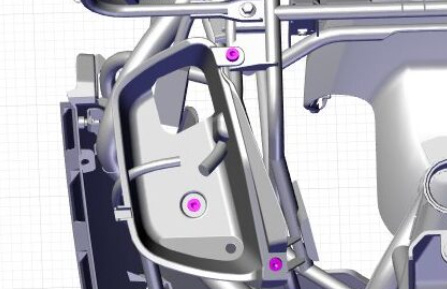

Remove Storage bolt

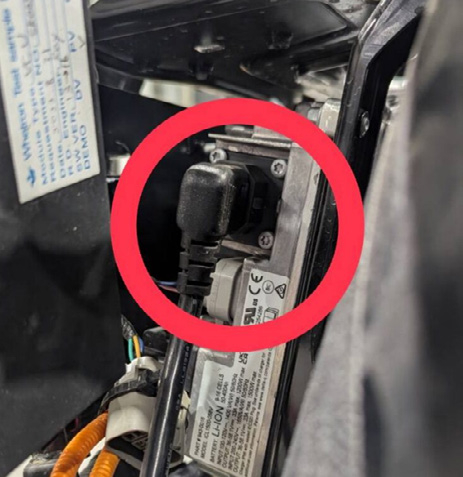

Disconnect OBC AC Charging Cable

Install

Installation procedure is the reverse of removal.
