Brakes

02017 Rear Brake Disc (Removal and Replacement)

Correction Code : 02017 Working Hours : 1.5H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.

Do not stack correction codes unless explicitly told to do so.

Remove

Remove Drive shaft Assy . See link below

01003 Drive Shaft Assy (Removal and Replacement)

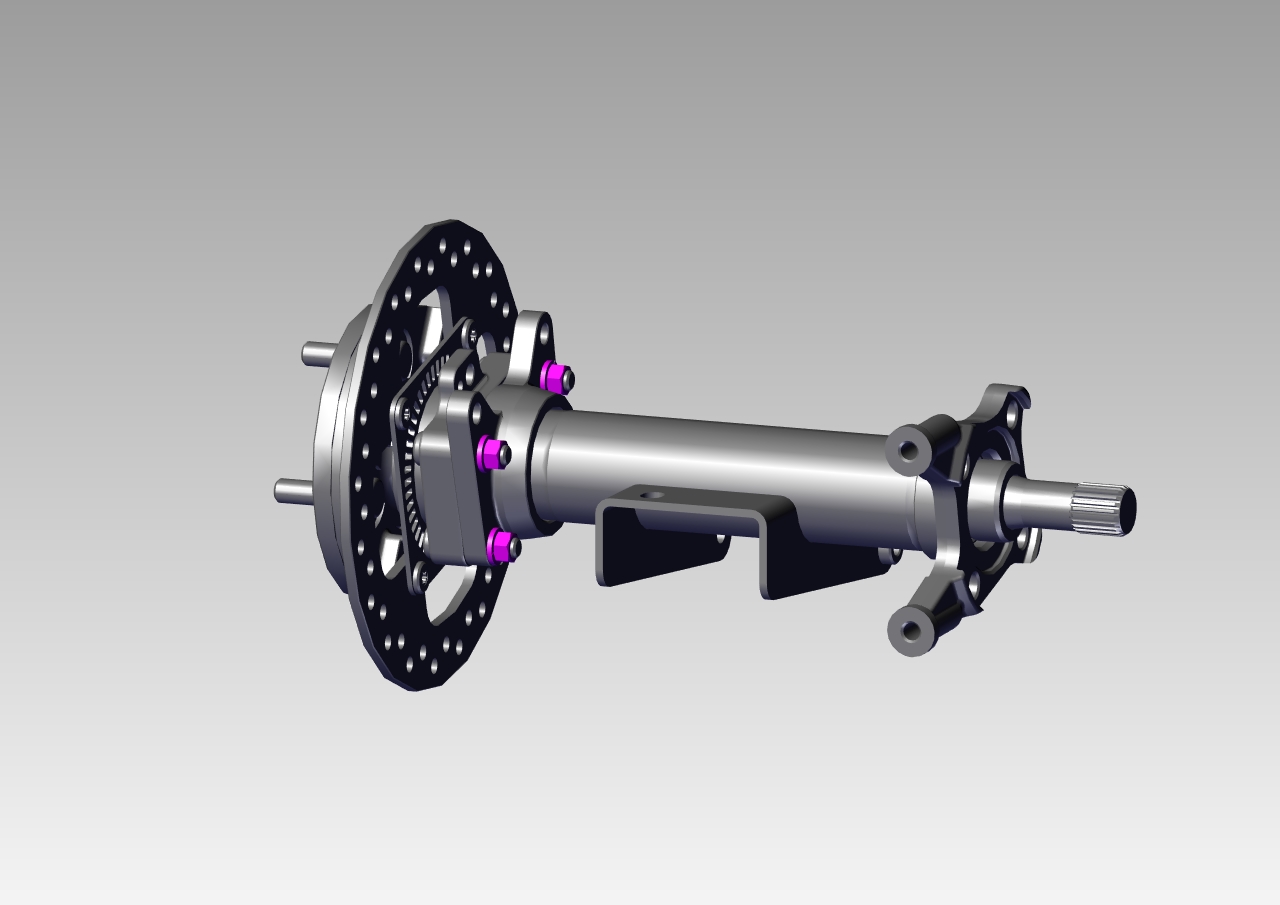

Remove Drive shaft Tube fixing bolt ( Troque : 54 N-m )

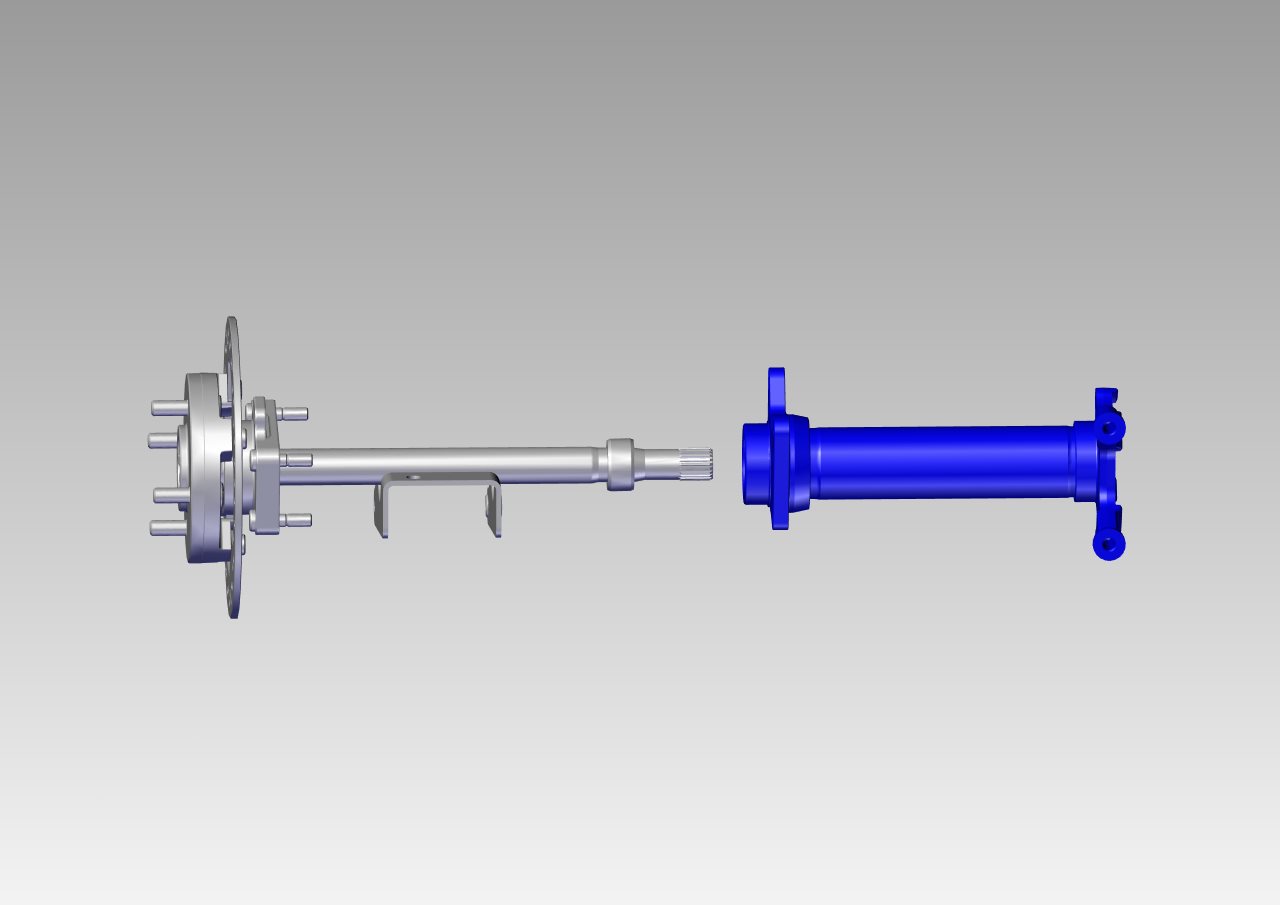

Remove Drive shaft Tube

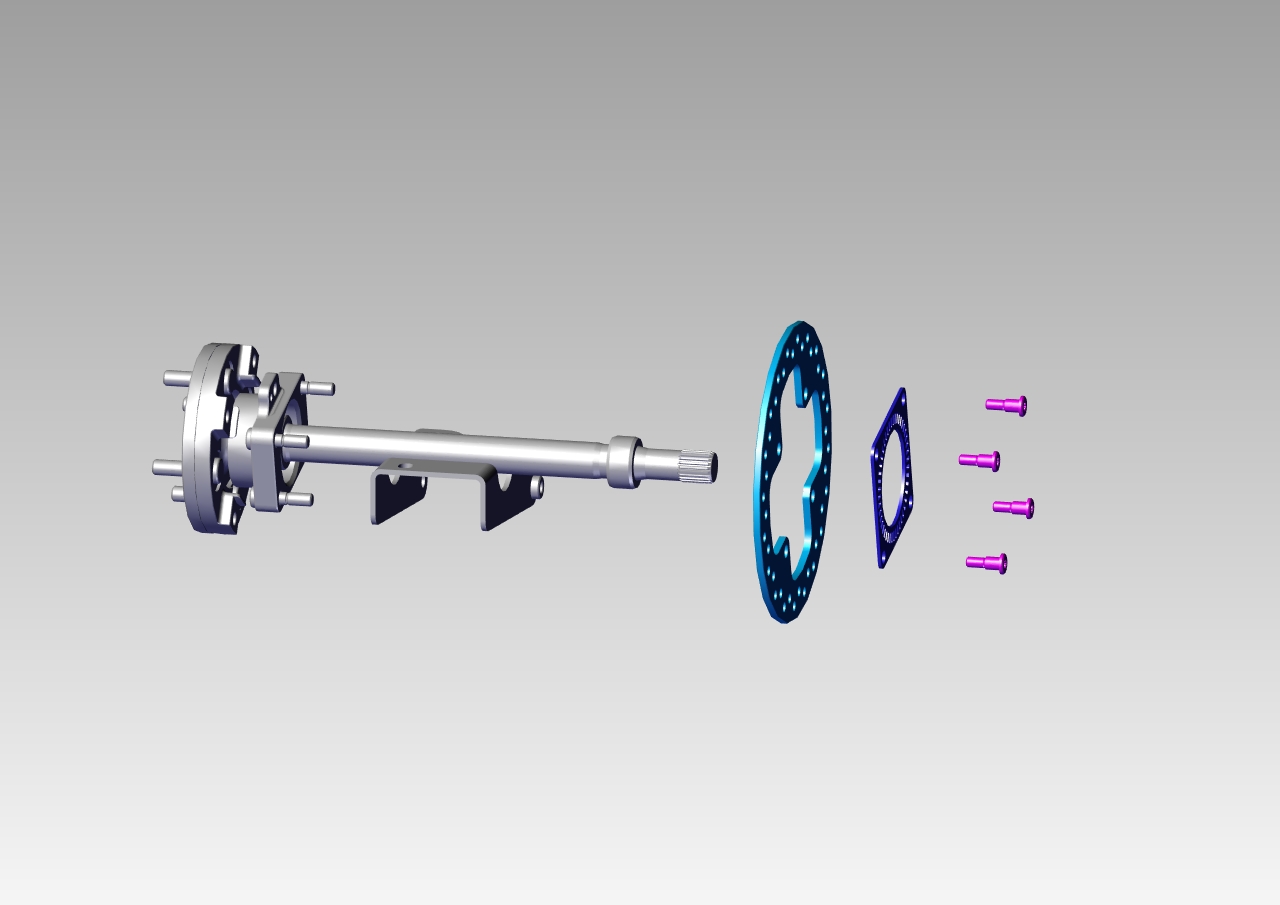

Remove Disc and ABS Tong Ring fixing bolt . ( Troque : 35 N-m )

Install

Installation procedure is the reverse of removal.
