Chassis

03005 Front Subframe – Lower (Removal and Replacement)

Correction Code : 03005 Working Hours : 2.5H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Front Subframe – Front . See link below

03004 Front Subframe Front (Removal and Replacement)

Remove Front Wheel Liner . See link below。

08002 Front Wheel Liner (Removal and Replacement)

Remove Rest Support Struture . See link below

03008 Foot Rest Support Structure (Removal and Replacement)

Remove 12V Barrery ( RH ). See link below

12001 Battery – 12V 8.6Ah (Removal and Replacement)

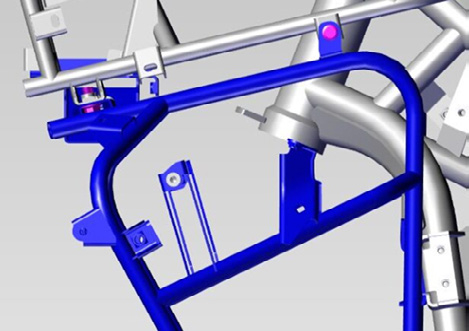

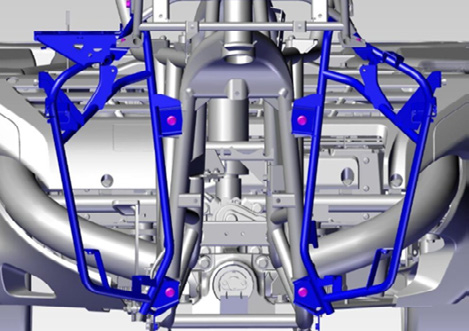

Remove Front Subframe – Lower fixing bolt ( Troque : 25N-m)

Install

Installation procedure is the reverse of removal.
