Low Voltage Electrical

12005 VCU (Removal and Replacement)

Correction Code : 12005 Working Hours : 0.2H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove left front upper side cover. See link below

06001 Front Upper Side Cover (Removal and Replacement)

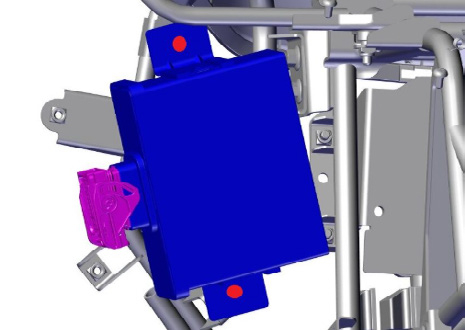

Remove the bolts from the frame. Next, remove the module plugs.

Install

Installation procedure is the reverse of removal.
