Body Component

07017 Canpy ( Removal and Replacement )

Correction Code : 07017 Working Hours : 0.7H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Wiper Arm . See link below

07013 Wiper Arm ( Removal and Replacement )

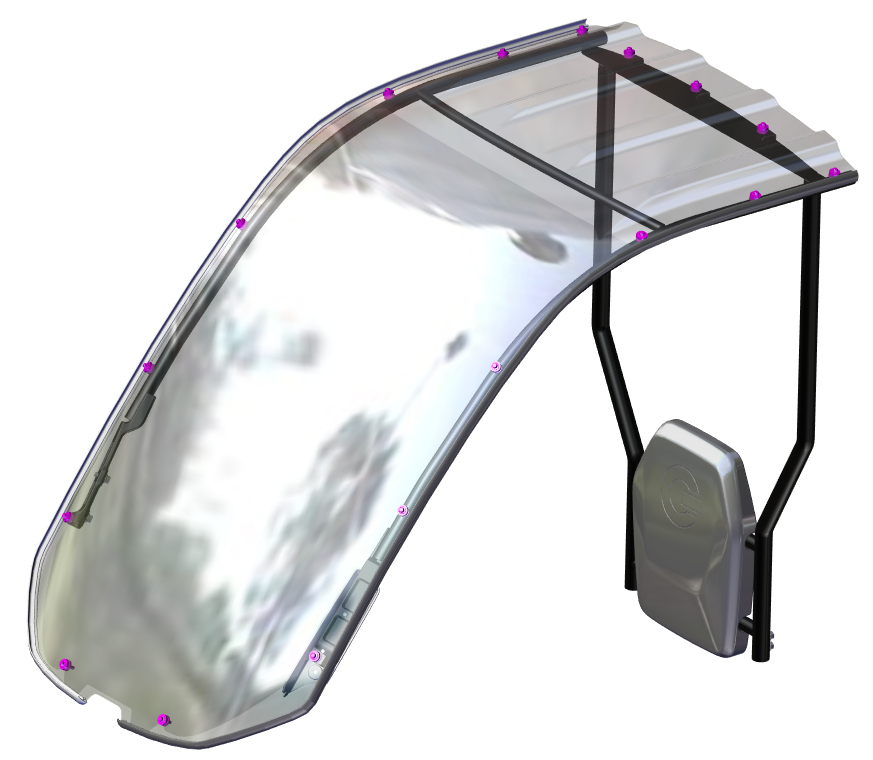

Remove the canopy fixing bolts (Torque: 8 N-m).

Install

Installation procedure is the reverse of removal.

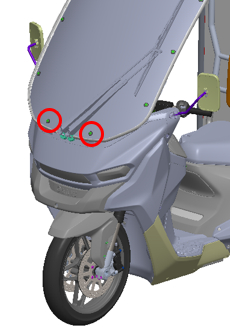

The two bolts circled at the front in the figure below shall be hand-tightened only (no torque specification
