High Voltage System

13001 OBC (Removal and Replacement)

Correction Code : 13001 Working Hours : 0.7H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

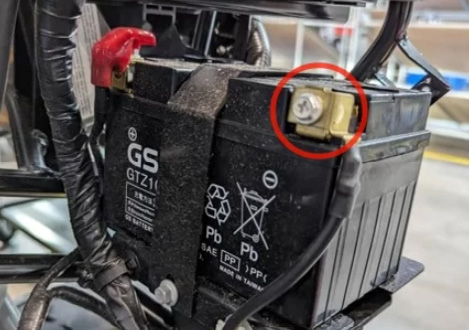

Disconnect the Negative and protect it with insulating materials

Remove PCU Mounting Plate . See link below

03007 PCU Mounting Plate (Removal and Replacement)

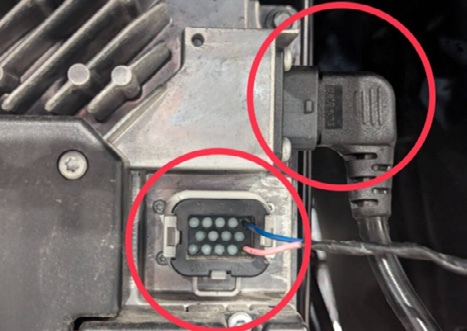

Disconnect OBC signal plug and AC Charging Cable

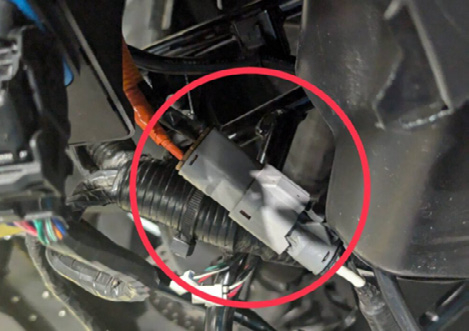

Disconnect OBC to 48V Battery plug

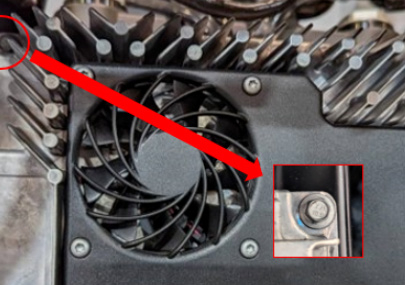

Remove the OBC fixing bolts from the four corners

Install

Installation procedure is the reverse of removal.
