Chassis

03008 Foot Rest Support Structure (Removal and Replacement)

Correction Code : 03008 Working Hours : 0.8H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove the Front Lower Side Cover . See link below

06009 Front Lower Side Cover (Removal and Replacement)

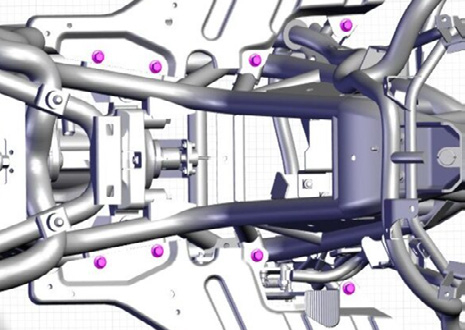

Remove the bolt from foot rest support structure ( Torque : 25 N-m)

Install

Installation procedure is the reverse of removal.
