Cargo Box Parts

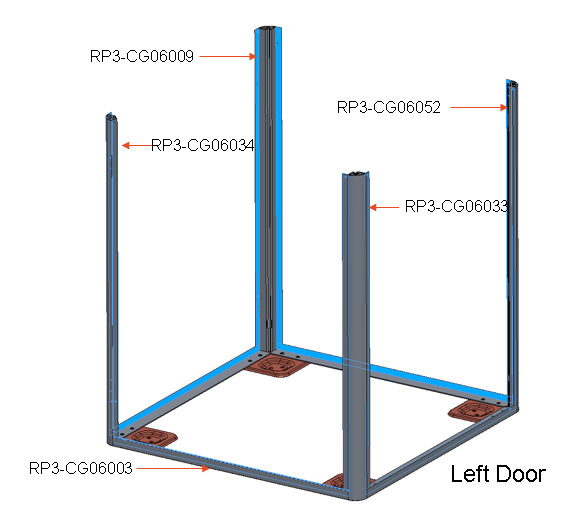

Aluminium Extrusion
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | 9607006-20 | 3M Double Side Tape W20mmxT1.6mm | 904 mm*4+1097.00 mm*8=12384 |
| 2. | RP3-CG06009 | Aluminium Extrusion Post R43 1129, L-SIDE R-SIDE | 1 |
| 3. | RP3-CG06033 | Aluminium Extrusion Post R43 1129, L-SIDE R-BARN | 1 |
| 4. | RP3-CG06034 | Aluminium Extrusion Post R43 1129, L-SIDE R-SIDE | 1 |
| 5. | RP3-CG06052 | Aluminium Extrusion Post R43 1129, L-BARN R-SIDE, 3 Hinge | 1 |
| 6. | RP3-CG06003 | Base Side Extrusion 904 | 4 |
