Chassis
03007 PCU Mounting Plate (Removal and Replacement)
Correction Code : 03007 Working Hours : 0.5H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove Front Facia . See link below
Step 2
Reomve PCU、ETL Controller 、Horn、AVAS Unit . See link below
01001 PCU (Removal and Replacement)
12007 ETL Controller (Removal and Replacement)
12010 Horn (Removal and Replacement)
12006 AVAS Unit (Removal and Replacement)
Step 3

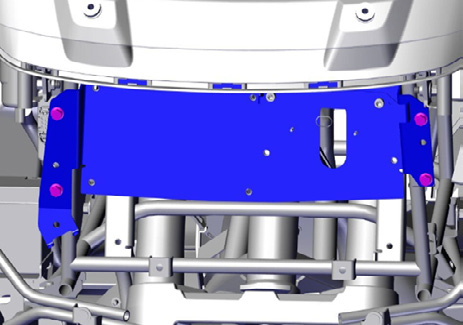

Remove the Mounting Plate fixing bolt

Install
Installation procedure is the reverse of removal.
