Chassis Parts

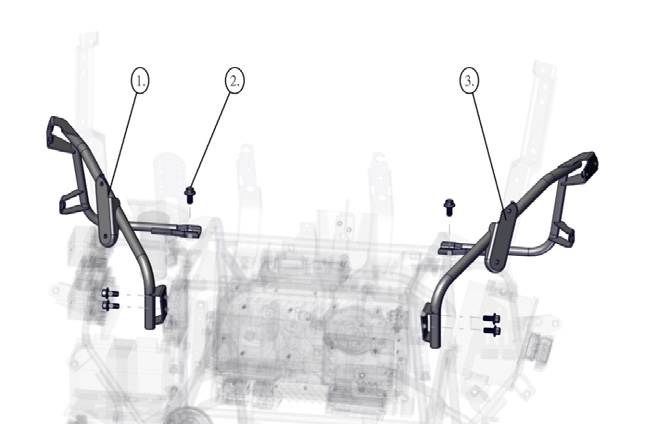

03003 Front Subframe – Mirror Parts
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CA01010 | Front Subframe, Mirror RH | 1 |
| 2. | 9102001-M8 | Screw M8-1.25*16 | 6 |
| 3. | RP3-CA01009 | Front Subframe, Mirror LH | 1 |
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CA01010 | Front Subframe, Mirror RH | 1 |
| 2. | 9102001-M8 | Screw M8-1.25*16 | 6 |
| 3. | RP3-CA01009 | Front Subframe, Mirror LH | 1 |
