Tilt System Assembly
15001 Tilt Brake Caliper (Removal and Replacement)
Correction Code : 15001 Working Hours : 0.3H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove Seat apron. See link below
Step 2
Use motorcycle wheel chock and hold the front wheel , Prevent the front body from tilting
Step 3
Put ETL into maintenance mode . See link below
Step 4
Remove Tlit Brake Caliper electrical connection
Step 5

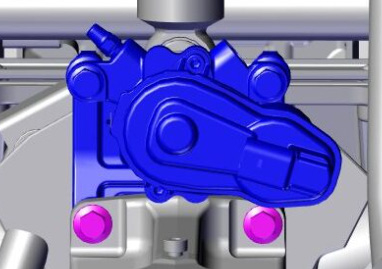

Remove Tlit Brake Caliper fixing bolt ( Troque : 65 N-m )
Install
Installation procedure is the reverse of removal.
Note:
When finished installing the brake pads and calipers, be sure to exit the service mode and test the ETL function
to see if it is working properly.
