Low Voltage Electrical
12001 Battery – 12V 8.6Ah (Removal and Replacement)
Correction Code : 12001 Working Hours : 0.4H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove right front upper side cover. See link below
Step 2

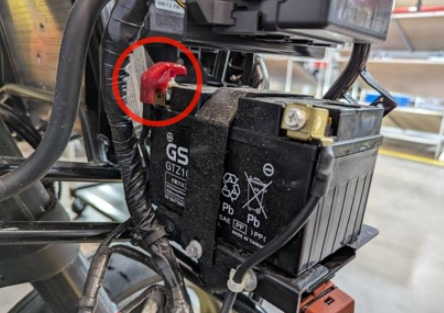

Disconnect the Negative and protect it with insulating materials

Step 3

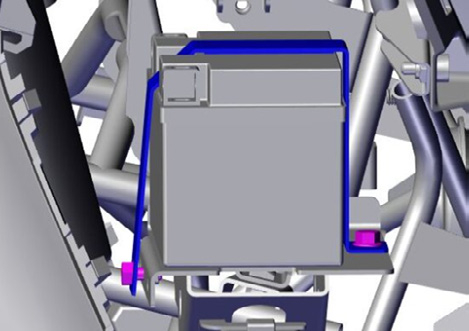

Remove battery bracket bolts and remove the bracket

Step 4

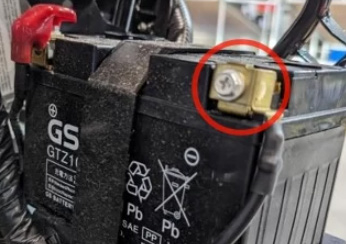

Disconnect the Positive

Install
Installation procedure is the reverse of removal.
