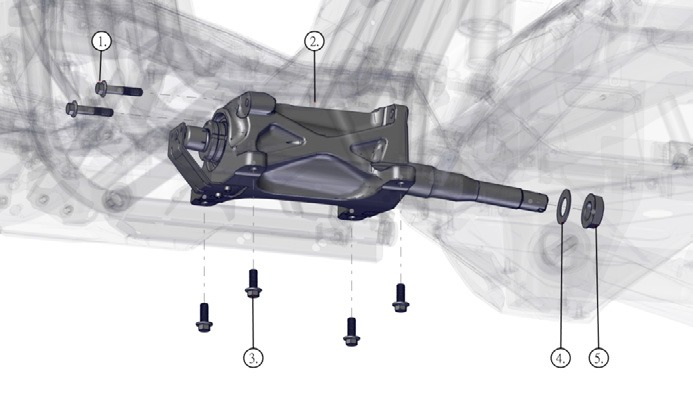

Tilt System Assembly Parts
15007 Tilt Assy Parts
| No. | 部品番号 | 部品名 | 数量 |
|---|---|---|---|
| No. | Part Number | Part Name | QTY. |
| 1. | 9102005-10 | Screw, M10-1.5X50mm-Flanged Hex Cap Bolt | 2 |
| 2. | RP3-G1A1002 | Tilt System General Assy | 1 |
| 3. | 9102009-10 | Screw, M10-1.5X25mm-Flanged Hex Cap Bolt | 4 |
| 4. | 9402002-24 | Washer,M24X44x1.6mm-Flat Washer | 1 |
| 5. | RP3-SP01028 | Nut, M24 xP1.5x 14.5mm Flange Hex | 1 |
