Tilt System Assembly
15002 Tilt Brake Pads (Removal and Replacement)
Correction Code : 15002 Working Hours : 0.3H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove Seat apron. See link below
Step 2
Use motorcycle wheel chock and hold the front wheel,Prevent the front body from tilting
Step 3
Put ETL into maintenance mode . See link below
Step 4

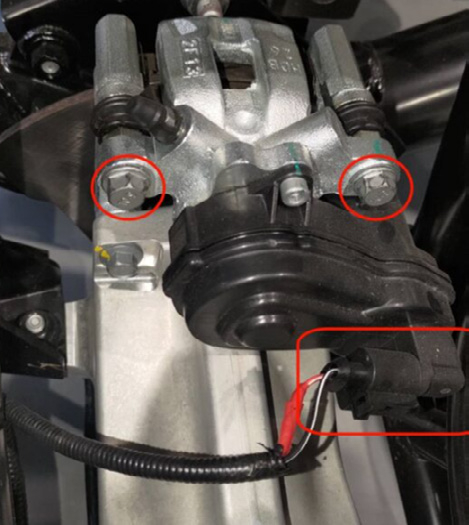

Remove electrical connection and bolt ( Troque : 35 N-m )
Step 5
Once the caliper is removed, the brake pads can be removed.
Install
Installation procedure is the reverse of removal.
Note:
When finished installing the brake pads and calipers, be sure to exit the service mode and test the ETL function
to see if it is working properly.
