12017 8 Inch Dash and IDU (Removal and Replacement)

Correction Code : 12002 Working Hours : 0.3H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove back dash bracket cover. See link below

06017 Back Dash Bracket Cover (Removal and Replacement)

Disconnect Dash and sound speak plug

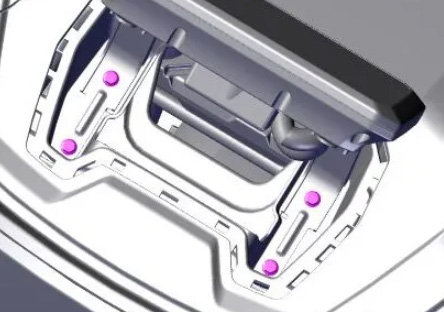

Remove the bracket fixing bolt , then move the Dash and bracket upwards to remove

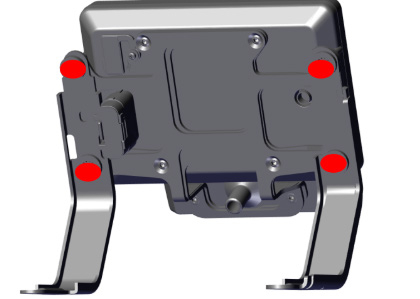

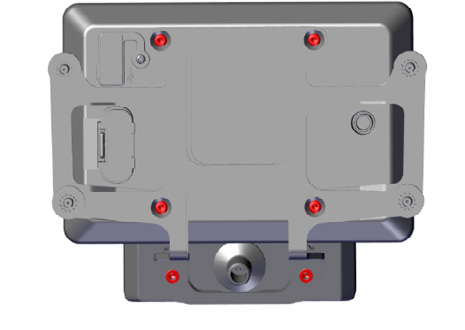

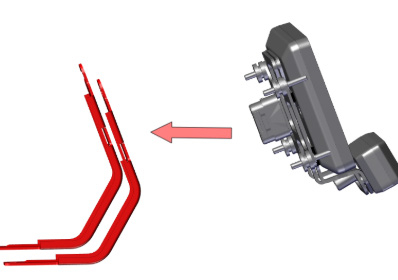

Remove the Dasd bracket and the Dash fixing screws and separate the Dash from the Dash bracket

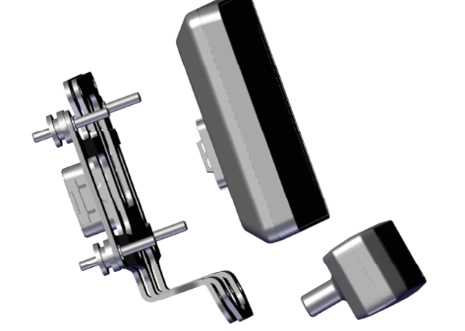

Remove the Dash Adaptor bracket fixing bolt than separate the Dash and IDU


Install

Installation procedure is the reverse of removal.
