Drive Unit
01003 Drive Shaft Assy (Removal and Replacement)
Correction Code : 01003 Working Hours : 1.2H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove the Spring and Danper . See link below
Step 2
Remove the Rear brake Caliper . See link below
Step 3
Remove the Watt’s Bracket . See link below
Step 4

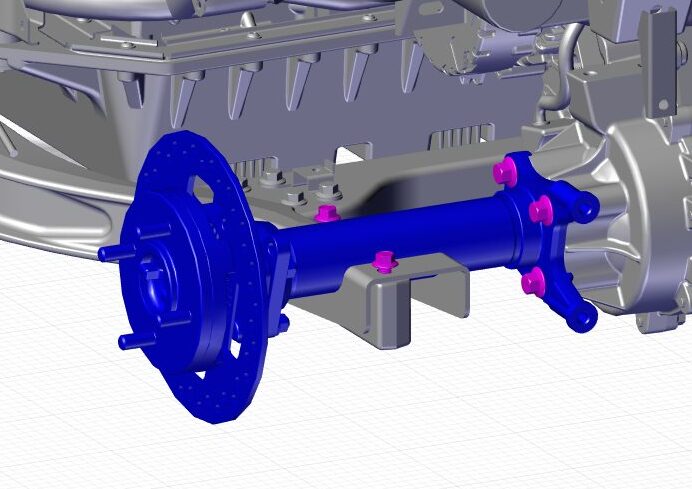

Remove remove the screws securing the Drive Shaft Assy and the Swing Arm ( Troque : 50 N-m )
Step 5
Remove the screws securing the Drive Shaft Assy and the E-Access ( Troque : 83 N-m )

Step 6

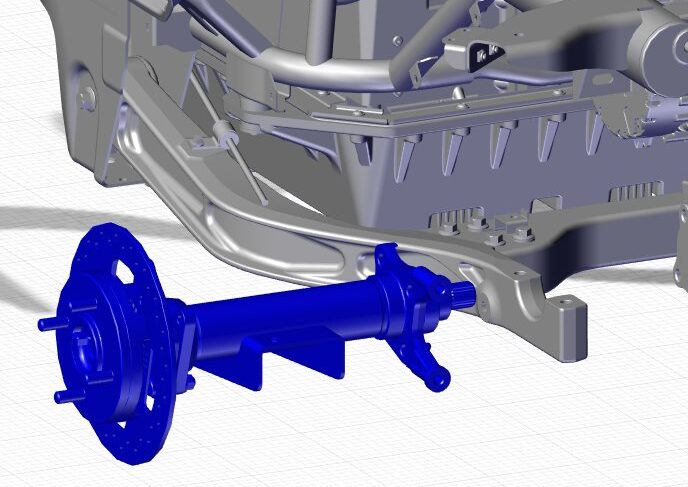

Pull the drive shaft outward

Install
Installation procedure is the reverse of removal.
