Low Voltage Electrical

12013 Module BSD (Removal and Replacement)

Correction Code : 12013 Working Hours : 0.4H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Cargo Box Floor . See link below

14001 Cargo Box Floor (Removal and Replacement)

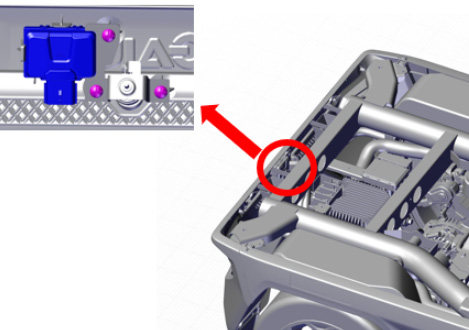

Remove Module BSD bolt and plug

Install

Installation procedure is the reverse of removal.
