Cargo Box Parts

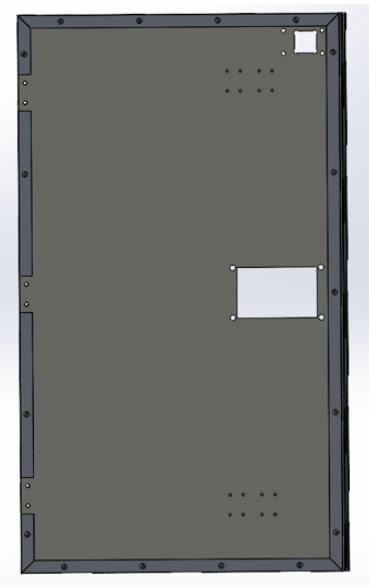

Cargo Box Door Penal L E-Lock
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CG03051 | Cargo Box Door Penal L_E-Lock | 1 |
| 2. | RP3-CG05028 | Door Structure HOR-B | 2 |
| 3. | RP3-CG05017 | Door Structure VER with LIP | 1 |
| 4. | RP3-CG05039 | Door Structure VER for 3 Hinge | 1 |
| 5. | 9505001-04 | Rivet AS 5-4 diameter 4mmxL11.4mm | 17 |

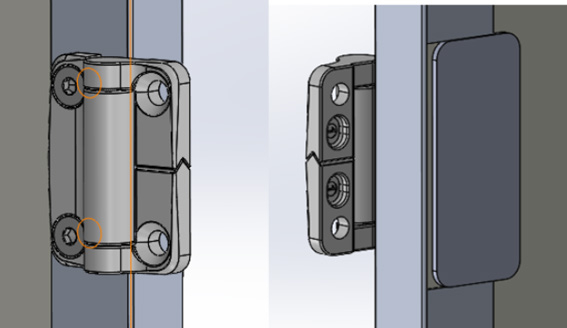

| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CG03026 | Door Hinge 38 | 3 |
| 2. | RP3-CG03034 | Hinge Fixing Spool | 3 |
| 3. | 9104002-M5 | Screw,M5-0.8X16mm-Hex drive flat head countersunk screw |
6 |

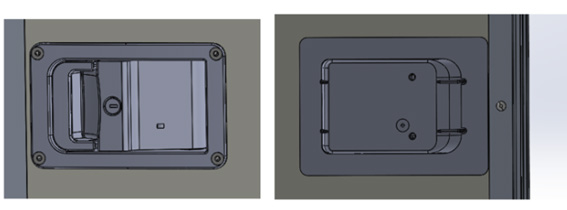

| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CG03053 | Lock Module, Cargo Box Standard | 1 |
| 2. | RP3-CG03059 | Door Lock Back Plate Cover | 1 |
| 3. | 9104003-M6 | HEX_DRIVE_FLAT_HEAD | 4 |
| 4. | – | Silicon Sealants(Black) | – |

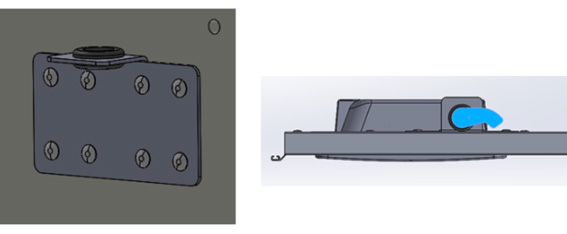

| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CG03055 | Lock Rod Guide | 2 |
| 2. | 9603001-22 | LOCK_ROD_GUIDE_BUSHING 22 | 2 |
| 3. | 9505002-48 | Rivet AS 6-5 diameter 4.8mm x L12mm | 16 |
| 4. | RP3-CGC3001 | Main Lock Upper Rod, Assy | 1 |
| 5. | RP3-CGC3002 | Main Lock Lower Rod, Assy | 1 |

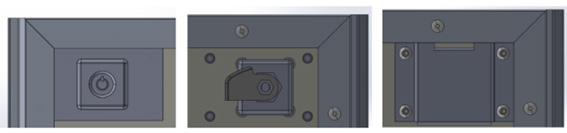

| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CG03046 | E lock Latch Cover | 1 |
| 2. | RP3-CG03045 | E lock Latch bracket | 1 |
| 3. | RP3-CG03050 | E lock Latch | 1 |
| 4. | RP3-CG03047 | E lock Latch Can | 1 |
| 5. | 9103002-M5 | M5-0.8X12mm Hex Socket Round Head Cap | 4 |
| 6. | – | Silicon Sealants(Black) | – |
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-CG06022 | Door Lip Seal 1070 | 1 |
