Low Voltage Electrical

12004 Telematic Box (Removal and Replacement)

Correction Code : 12004 Working Hours : 0.2H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Back Dash Bracket Cover. see link below

06017 Back Dash Bracket Cover (Removal and Replacement)

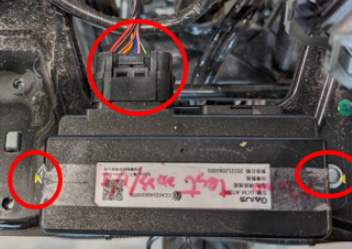

Remove electronic connection and bolt

Install

Installation procedure is the reverse of removal.
