Body

06004 Leg Shield (Removal and Replacement)

Correction Code : 06004 Working Hours : 0.2H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove RH front up side cover. See link below

06001 Front Upper Side Cover (Removal and Replacement)

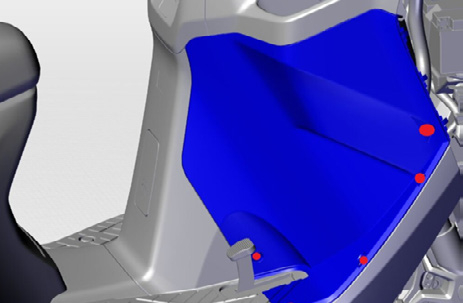

Remove the clip and bolt

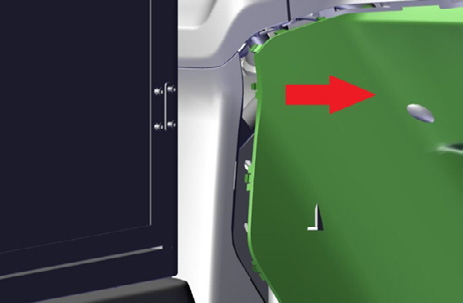

Pull the leg shields outward toward the top of the front.

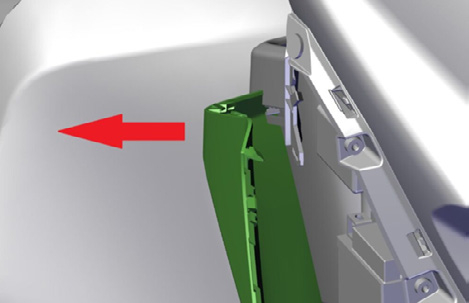

At the back of the leg shield, carefully pull it outwards.

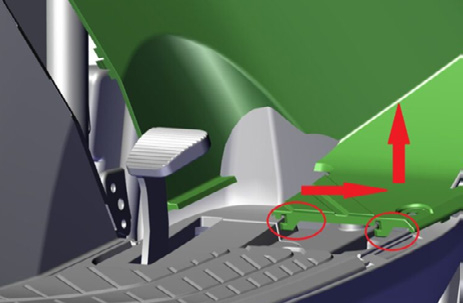

Underneath the leg shields pull outwards first and then upwards

Install

Installation procedure is the reverse of removal.
