Wheel and Tires

10002 Rear Wheel Assy (Removal and Replacement)

Correction Code : 10002 Working Hours : 0.2H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Lift the Vehicle. See link below

00001 Raise Vehicle

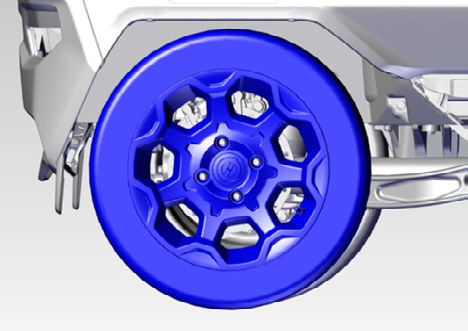

Remove the lug nuts from the wheel, and then remove the wheel from the vehicle. ( Torque : 100 N-m )

Install

Installation procedure is the reverse of removal.
