Tilt System Assembly

15006 Tilt Angle Sensor (Removal and Replacement)

Correction Code : 15006 Working Hours : 0.7H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove foot Reat . See link below

06008 Foot Rest (Removal and Replacement)

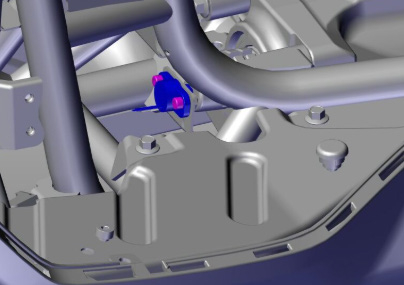

Remove the Tilt Angle Sensor fixing bolt and disconnect the wiring

Install

Installation procedure is the reverse of removal.
