Body
06020 Storage Compartment – R (Removal and Replacement)
Correction Code : 06020 Working Hours : 1.1H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove Dash Cover . See link below
Step 2

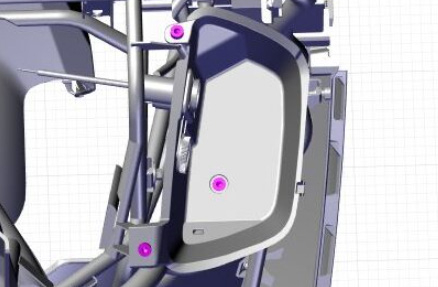

Remove Storage bolt

Step 3

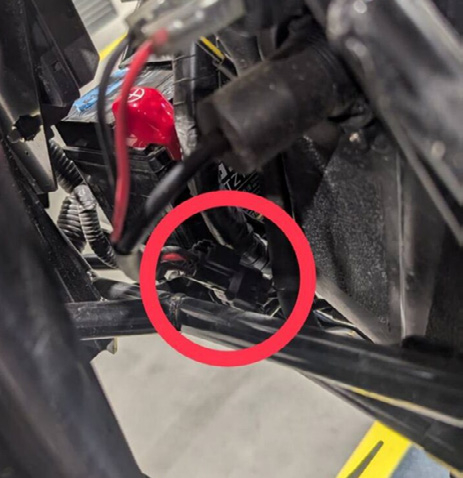

Disconnect USB Socket plug

Install
Installation procedure is the reverse of removal.
