Body

06018 Dash Cover (Removal and Replacement)

Correction Code : 06018 Working Hours : 1H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove windshield Bracket . See link below

07004 Windshield Bracket (Removal and Replacement)

Remove Dash . See link below

12002 Dash (Removal and Replacement)

Remove Leg Shield Mid Assy . See link below

06006 Leg Shield Mid Assy (Removal and Replacement)

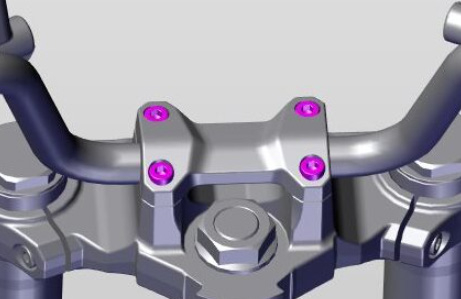

Remove handlebar Retention Cap. ( Torque : 25 N-m )

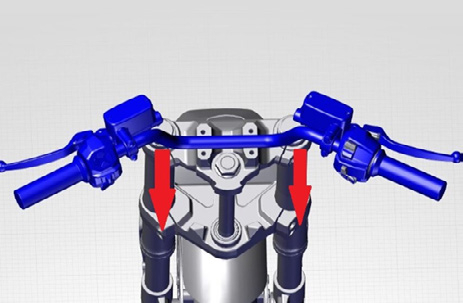

Move the handlebar assembly backward to make some space, and then move the Dash Cover upward

Tip: There are still fuel pipes and wiring harnesses in the handle assembly, don’t pull it hard.

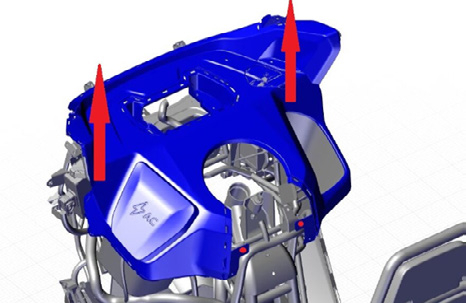

Remove clip and pull up Dash Cover

Install

Installation procedure is the reverse of removal.
