Wheel and Tires

10005 Front TPMS (Removal and Replacement)

Correction Code : 10005 Working Hours : 0.8H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Front Wheel . See link below

10001 Front Wheel Assembly (Removal and Replacement)

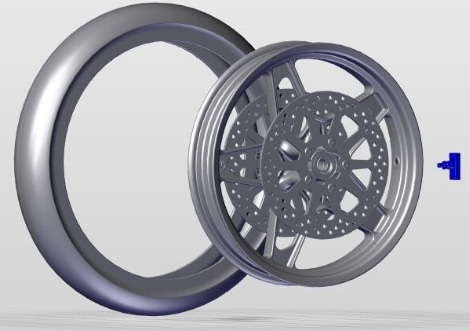

Remove tires then remove front TPMS Sensor ( Troque : 4.5 N-m )

Install

Installation procedure is the reverse of removal.
