Body Component
07002 Windshield – Short (Removal and Replacement)
Correction Code : 07002 Working Hours : 0.1H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove LH/RH Windshield Stand Cover. See link below。
Step 2

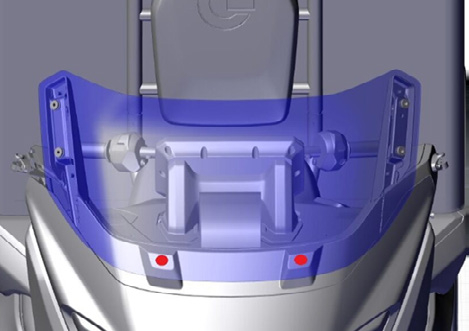

Remove the securing bolt underneath the windshield.

Install
Installation procedure is the reverse of removal.
