04010 Watt’s Link Subframe (Removal and Replacement)

Correction Code : 04010 Working Hours : 1.3H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove the Rear Bumper . See link below

06026 Rear Bumper (Removal and Replacement)

Remove the Rear Wheel Liner . See link below

08003 Rear Wheel Liner (Removal and Replacement)

Watt’s Link Tie Rod . See link below

04007 Watt Link Tie Rod (Removal and Replacement)

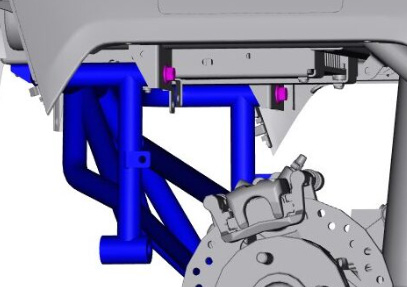

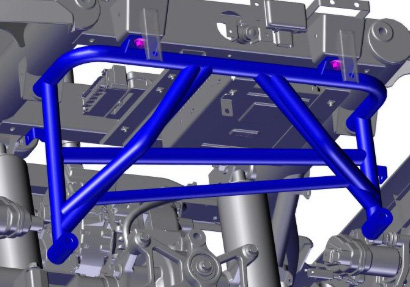

Remove the Watt’s Link Subframe fixing bolt . ( Troque : 55 N-m )

Install

Installation procedure is the reverse of removal.
