Protect Component Parts

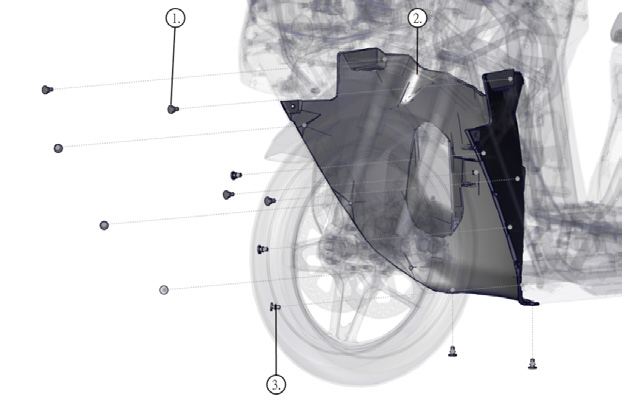

08002 Front Wheel Liner Parts
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | 9101008-M6 | Screw,M6-1.0X16mm | 2 |
| 2. | RP3-PC02001 | Front Wheel liner | 1 |
| 3. | 9301001-10 | Clip | 10 |
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | 9101008-M6 | Screw,M6-1.0X16mm | 2 |
| 2. | RP3-PC02001 | Front Wheel liner | 1 |
| 3. | 9301001-10 | Clip | 10 |
