Chassis

03004 Front Subframe – Front (Removal and Replacement)

Correction Code : 03004 Working Hours : 1.3H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Dash Cover . See link below

06018 Dash Cover (Removal and Replacement)

Remove VCU . See link below

12005 VCU (Removal and Replacement)

Remove Fuse and Relay Box . See link below

Tip: There are still wiring harnesses in the handle assembly, don’t pull it hard.

12008 Fuse and Relay Box (Removal)

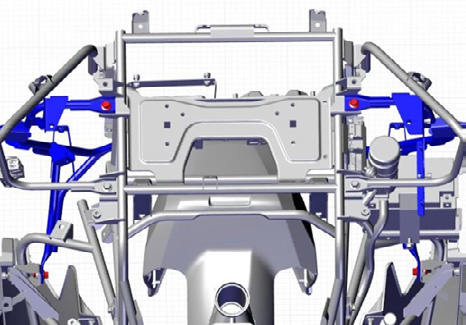

Remove Front Subframe – Front fixing bolt ( Troque : 25 N-m )

Install

Installation procedure is the reverse of removal.
