Body Component
07013 Wiper Arm ( Removal and Replacement )
Correction Code : 07013 Working Hours : 0.4H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove Wiper Blade . See link below
Step 2

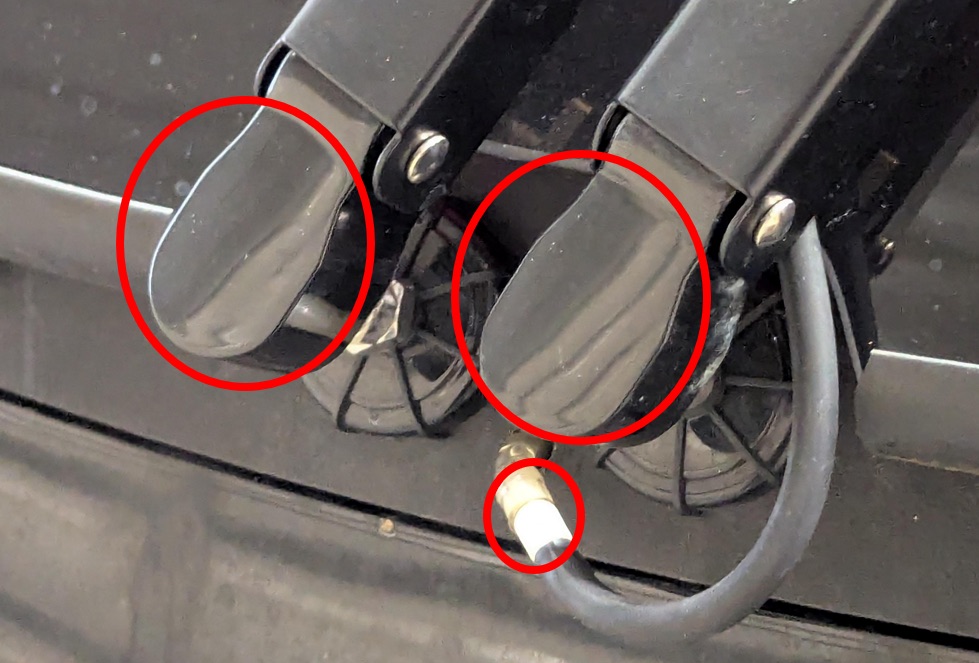

Remove the wiper arm cover and disconnect the washer hose.

Step 3
Remove the left wiper arm fixing nut (Torque: 25 N-m)

Step 4
Loosen the right wiper arm nut.

Install
Installation procedure is the reverse of removal.
