Body Component

07012 Wiper Blade ( Removal and Replacement )

Correction Code : 07012 Working Hours : 0.1H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

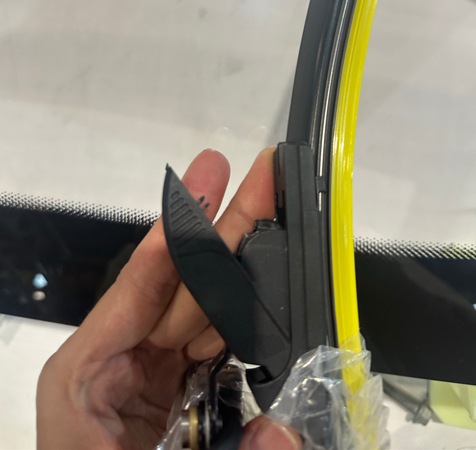

Open the plastic protective cover.

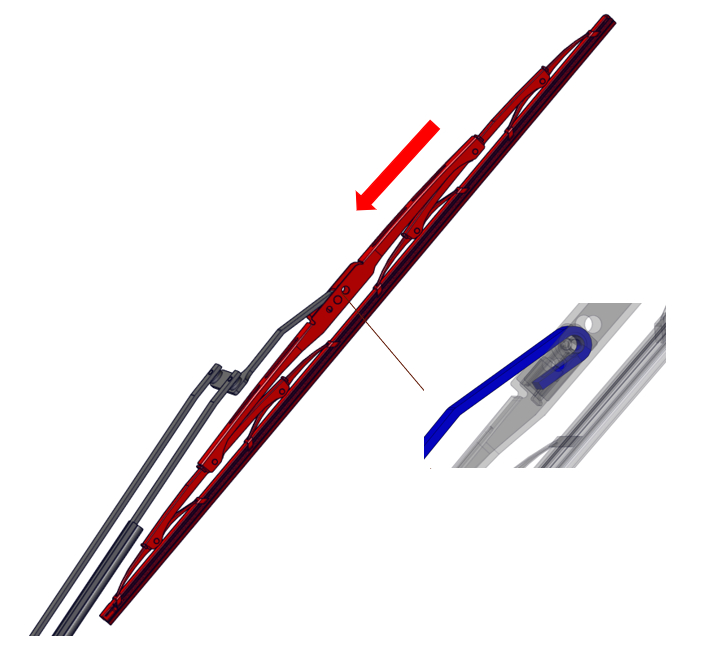

Pull the wiper blade downward to remove it.

Install

Installation procedure is the reverse of removal.
