Drive Unit

01002 Gear Oil (Replacement)

Correction Code : 01002 Working Hours : 0.6H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.

Do not stack correction codes unless explicitly told to do so.

Remove

Remove the left Wear Wheel Assy . See limk below

10002 Rear Wheel Assy (Removal and Replacement)

Remove Swing Arm Underbody . See limk below

03001 Swing Arm Underbody Panel (Removal and Replacement)

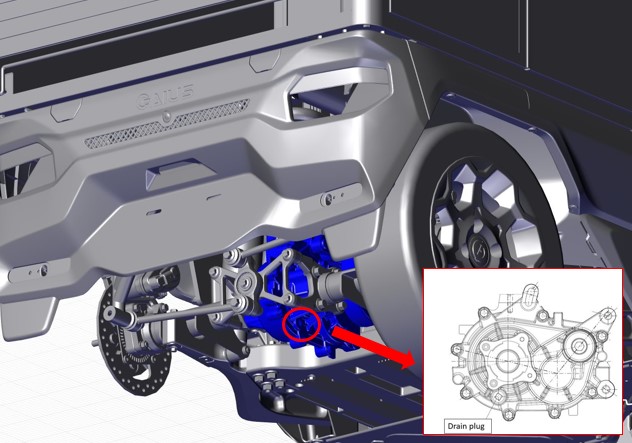

Remove Drain plug and drain the gear oil . ( Troque : 28 N-m ))

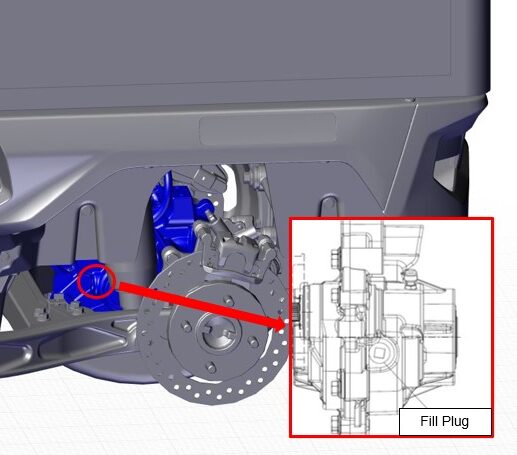

Remove Fill plug and fill the gear oil . ( Troque : 28 N-m )

00004 Fluids and Capacities

Install

Installation procedure is the reverse of removal.
