Tilt System Assembly

15005 Tilt Spring (Removal and Replacement)

Correction Code : 15005 Working Hours : 0.4H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove seat Apron . See link below

06007 Seat Apron (Removal and Replacement)

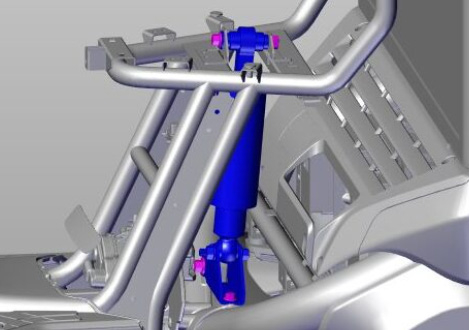

Remove the upper spring fixing bolts ( Troque : 85 N-m ), and remove the lower spring with the bracket ( Troque : 55 N-m )

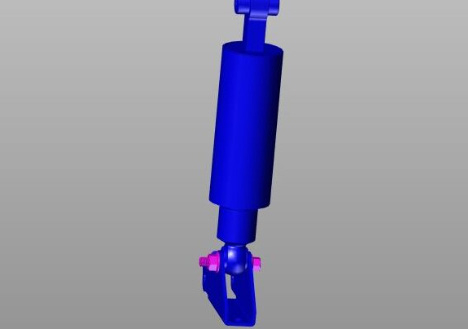

Separate the spring from the bracket ( Troque : 85 N-m )

Install

Installation procedure is the reverse of removal.
