Body Component

07014 Wiper Motor ( Removal and Replacement )

Correction Code : 07014 Working Hours : 0.8H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Wiper Arm . See link below

07013 Wiper Arm ( Removal and Replacement )

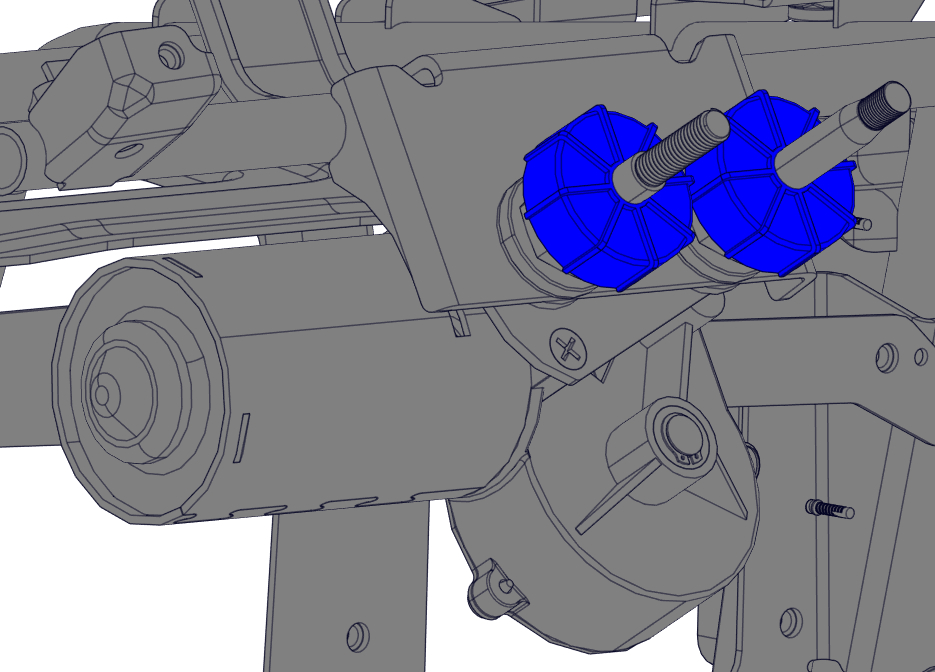

Remove the waterproof cover.

Remove Front Face Upper Cover . See link below

06012 Front Face Upper Cover

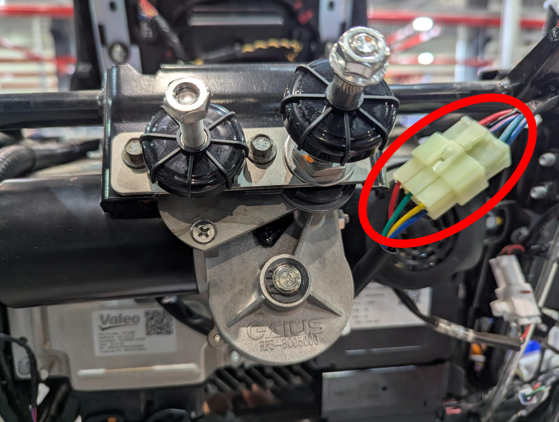

Disconnect the wiper motor connector.

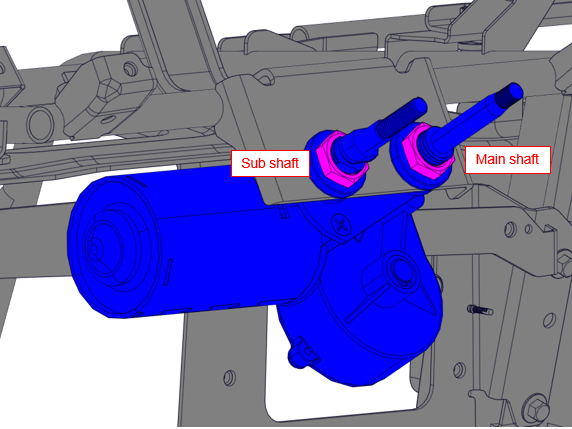

Remove the wiper motor mounting nuts

(Main shaft: Torque 30 N-m, Sub shaft: Torque 10 N-m).

Install

Installation procedure is the reverse of removal.
