06008 Foot Rest (Removal and Replacement)

Correction Code : 06008 Working Hours : 0.6H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Leg Shield Mid. See link below

06006 Leg Shield Mid Assy (Removal and Replacement)

Remove Seat Apron . See link below

06007 Seat Apron (Removal and Replacement)

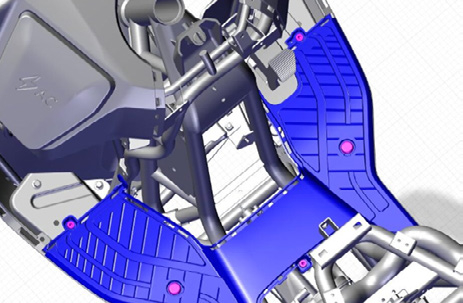

Remove Foot Rest bolt

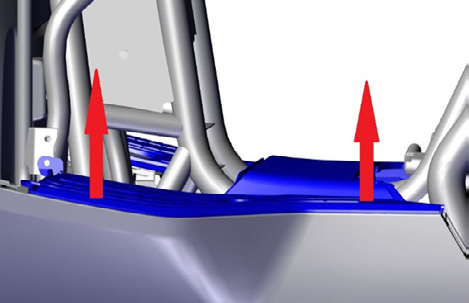

Pull the foot rest up to remove

Install

Installation procedure is the reverse of removal.
