06026 Rear Bumper (Removal and Replacement)

Correction Code : 06026 Working Hours : 0.6H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.。

Remove

Remove Cargo Box. See link below

14002 Cargo Box (Removal and Replacement)

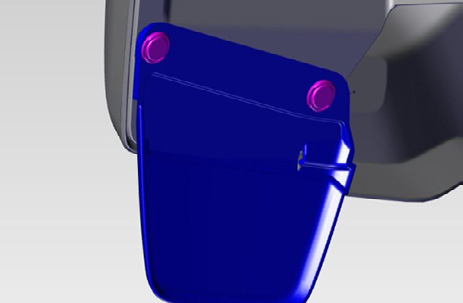

Remove left/right rear Mudguard

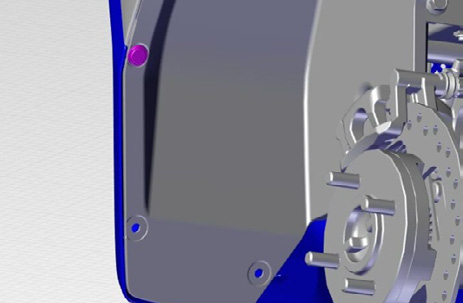

Remove left/right side clip

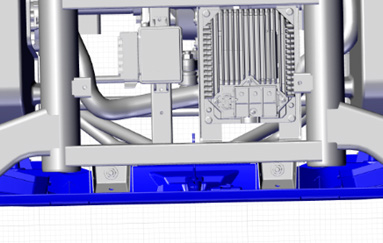

Remove upper clip

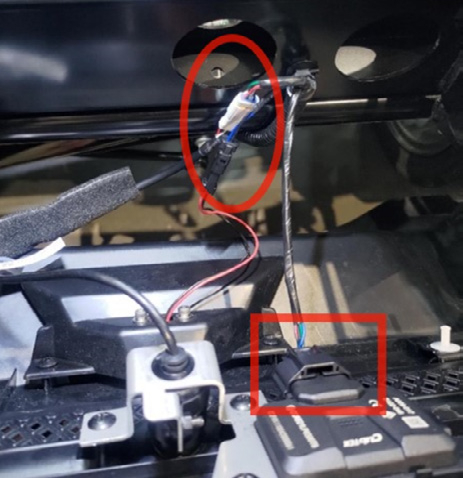

Disconnect License Plate Light, DVR Rear Camera, BSD Module Connector

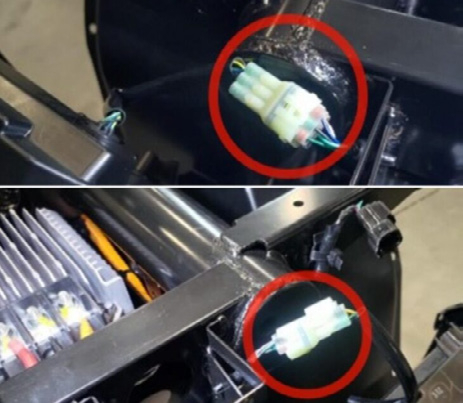

Disconnect the left and right tail light connectors.

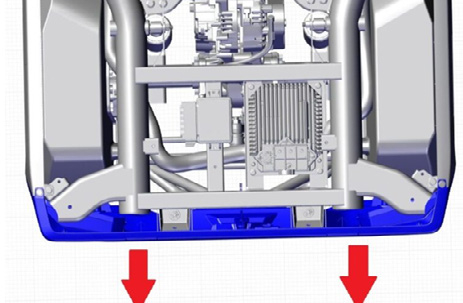

Pull the rear bumper back to separate the buckle from the frame

Install

Installation procedure is the reverse of removal.
