Suspension

04003 Spring and Damper (Removal and Replacement)

Correction Code : 04003 Working Hours : 0.5H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove the Rear Wheel liner . See link below

08003 Rear Wheel Liner (Removal and Replacement)

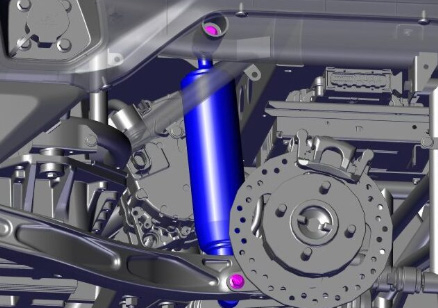

Remove the Spring and Danper fixing bolt . ( Troque : 70 N-m )

Install

Installation procedure is the reverse of removal.
