Brakes
02011 Rear Brake Pads (Removal and Replacement)
Correction Code : 02011 Working Hours : 0.4H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Rasie Vehicle . See link below
Step 2
Remove Rear Wheel Assy . See link below
Step 4

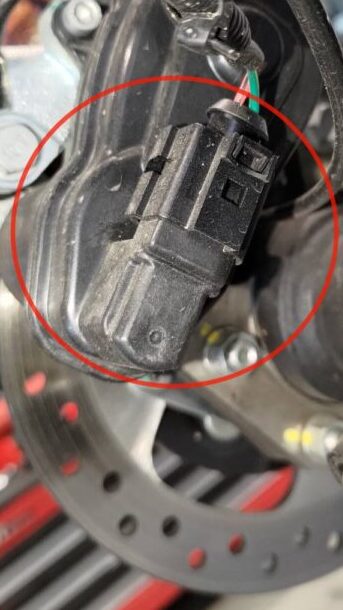

Disconnect the electrical connector from the rear brake caliper.

Step 5

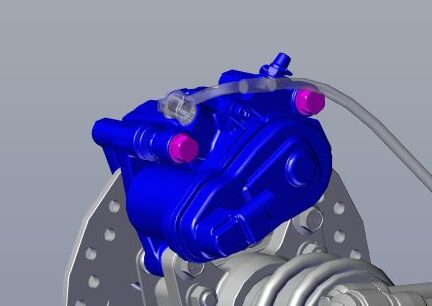

Remove the bolts that attach the rear brake caliper to the rear brake caliper bracket . ( Troque : 35 N-m)

Step 6
Use a S-hook brake caliper to hang the rear brake caliper on the body.
Step 7

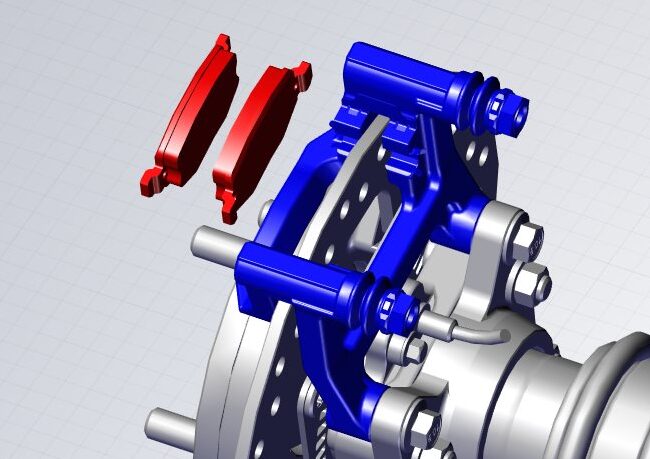

Remove the brake pads from the rear brake caliper bracket.

Install
Installation procedure is the reverse of removal.
Tip : Use the brake caliper piston adjuster to retract the caliper piston
