Seat

09001 Seat (Removal and Replacement)

Correction Code:09001 Working Hours : 0.1H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Ensure that the vehicle is properly parked and power has been switched off before preparing to remove the seat.

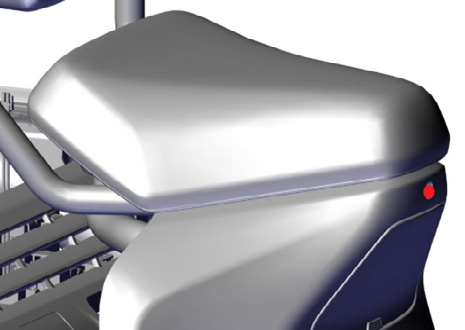

Remove the bolts that attach the seat apron.

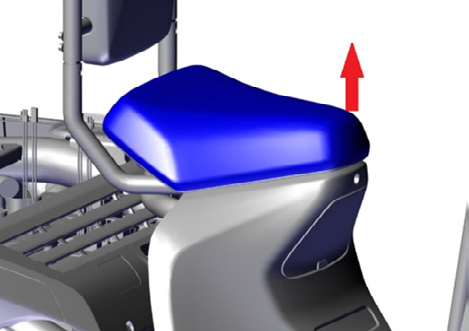

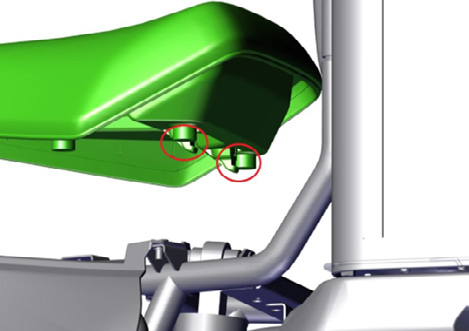

After pulling the front of the seat upwards, remove the seat forwards.

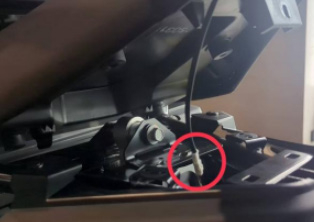

Disconnect the seat sensor connector

Install

Installation procedure is the reverse of removal.
