High Voltage System

13003 HV Harness – Motor (Removal and Replacement)

Correction Code : 13003 Working Hours : 0.6H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Perform Disconnect Power

11001 Disconnect Power (Removal)

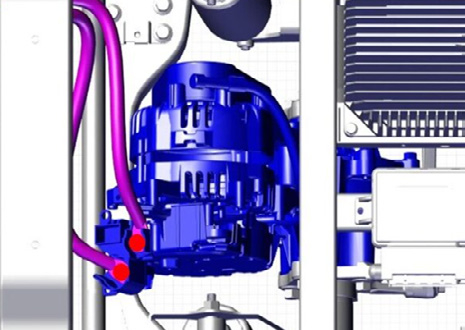

Remove Motor HV Harness bolt ( Torque : 13 N-m )

Install

Installation procedure is the reverse of removal.
