Brakes

02022 EPB Switch (Removal and Replacement)

Correction Code : 02022 Working Hours : 0.3H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.

Do not stack correction codes unless explicitly told to do so.

Remove

Remove FR Console . See link below

06005 FR Console (Removal and Replacement)

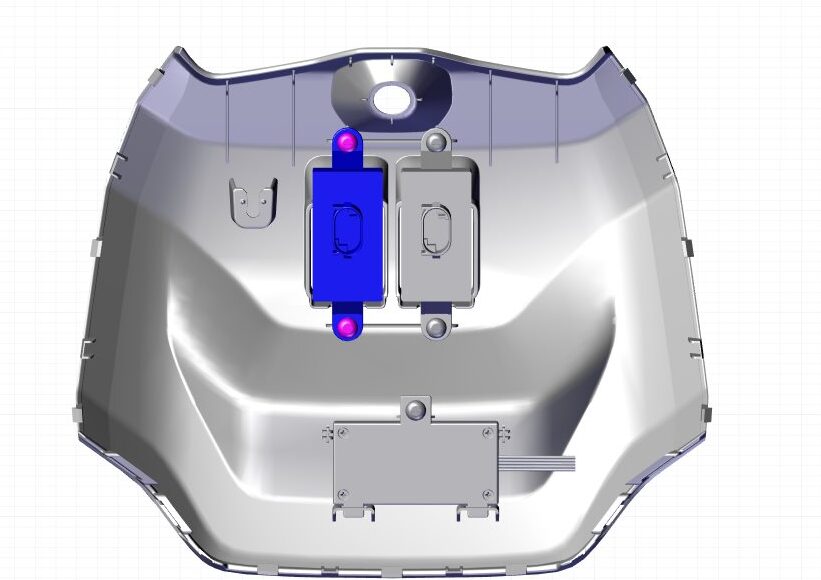

Remove the screw from the EPB switch on the FR console.

Install

Installation procedure is the reverse of removal.

Tip:“EPB switch and Tilt switch have the same connector shape. Please be mindful during installation to follow the respective markings first.”
