12008 Fuse and Relay Box (Removal and Replacement)

Correction Code : 12008 Working Hours : 0.2H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours
reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove right Front Upper Side Cover. See link below

06001 Front Upper Side Cover (Removal and Replacement)

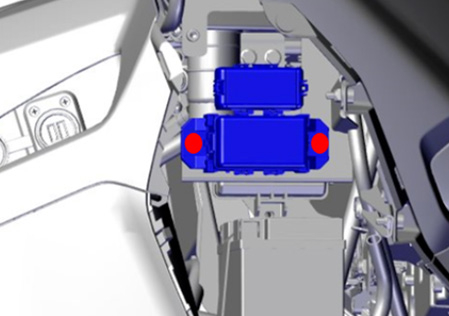

Remove Fuse and Relay fixing bolt

Tip: There are still wiring harnesses in the handle assembly, don’t pull it hard.

Install

Installation procedure is the reverse of removal.
