Steering
05001 Handlebar (Removal and Replacement)
Correction Code : 05001 Working Hours : 0.2H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1

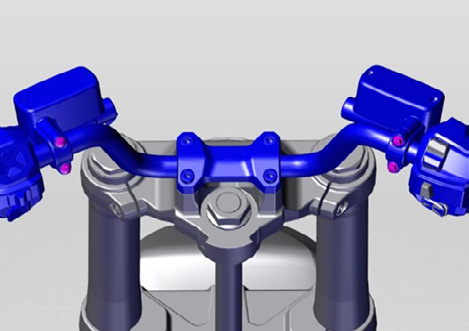

Remove the LH and RH Hand Brake Cylinder fixing bolt.( Torque : 10 N-m )
Tip: There are still oil pipes in the handle assembly, don’t pull it hard.

Step 2

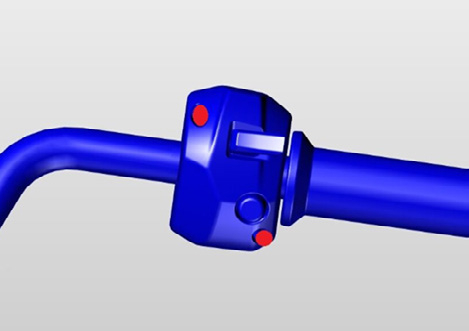

Remove LH and RH Switch fixing bolt
Tip: There are still wiring harnesses in the handle assembly, don’t pull it hard.

Step 3

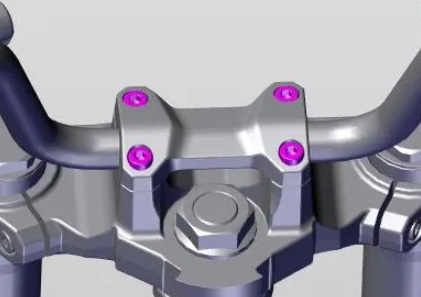

Remove handlebar Retention Cap. ( Torque : 20 N-m )

Step 4

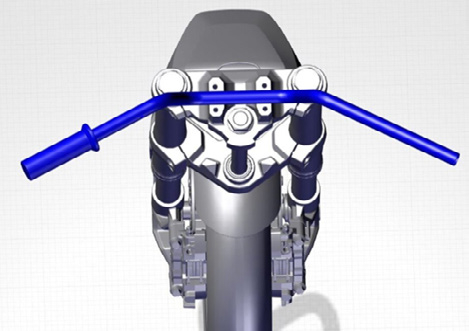

Remove Handlebar
Tip : Please mark the original position of the handlebar before removing it.

Install
Installation procedure is the reverse of removal.
