Brakes

02021 Rear ABS Wheel Speed Sensor (Removal and Replacement)

Correction Code : 02021 Working Hours : 0.4H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.

Do not stack correction codes unless explicitly told to do so.

Remove

Remove Rear wheel Liner . See link below

08003 Rear Wheel Liner (Removal and Replacement)

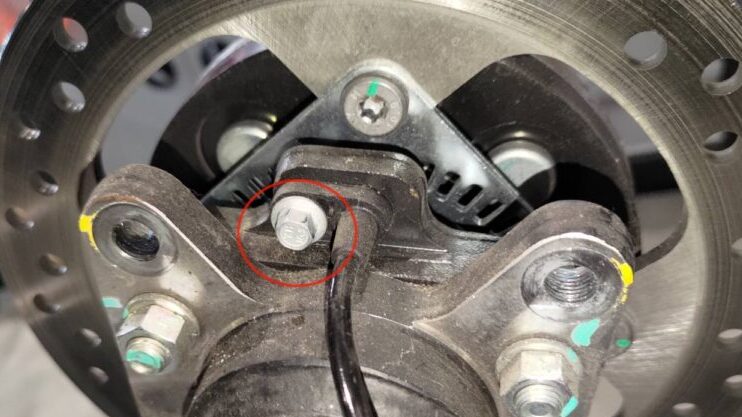

Remove the bolt from the sensor

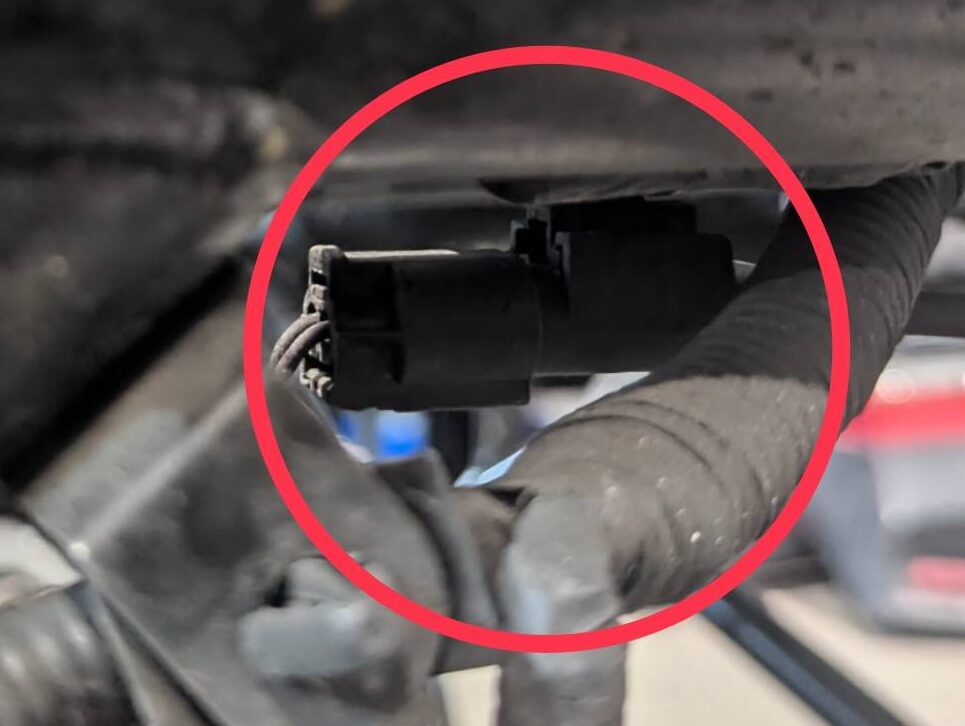

Remove the connect from the sensor

Install

Installation procedure is the reverse of removal.
